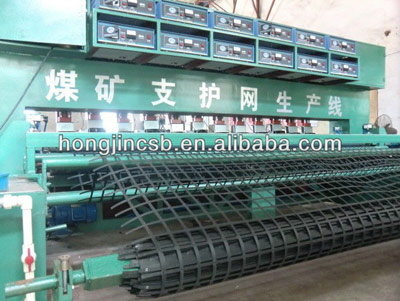

Shanghai hongjin can produce geogrid production line,for example,steel-plastic geogrid,PP welding geogrid and PET geogrid,fiber glass geogrid etc.
Describe:
 Geogrid Production Line Specification ,Paramenter,Dimension and Price

Geogrid welding head station	HJM-12-3	HJM-16-4		HJM-24-6	HJM-32-8
Welding digits	12 unit	16 unit		24 unit	32 unit
Maximum output power	31.2KW	41.6.4KW		62.4KW	83.2KW
Ultrasonic output power	15.6KW	20.8KW		31.2KW	41.6KW
Equipment Dimensions	4.5*1.76*2.46	5.5*1.76*2.46		7.5*1.1.76*2.46	9.5*1.76*2.46
Weight	3.5TONS	4.8TONGS		5.7TONS	7.5TONS
Rated input voltage	AC380V       N 50-60HZ
Rated input pressure	0.8~0.10MPa
Air pressure vessel	≥2.5~3.0/min
Air Flow	1.5~2.0M3		2.5~3.0M3
Transverse weld pitch	50mm-80mm-125mm-150mm-200mm--3000
Longitudinal distance between welding points,	50mm-150mm
Geogrid width of the welding machine	3m	4m		6m	8m
24 hours a day production	3500SQM	4500 SQM		6500SQM	8500SQM


Mob/whatsapp/wechat:+86 18017923790 E-mail:shanghai@hongjincsb.com  Skype:wangze_hong

PET geogrid production line ：

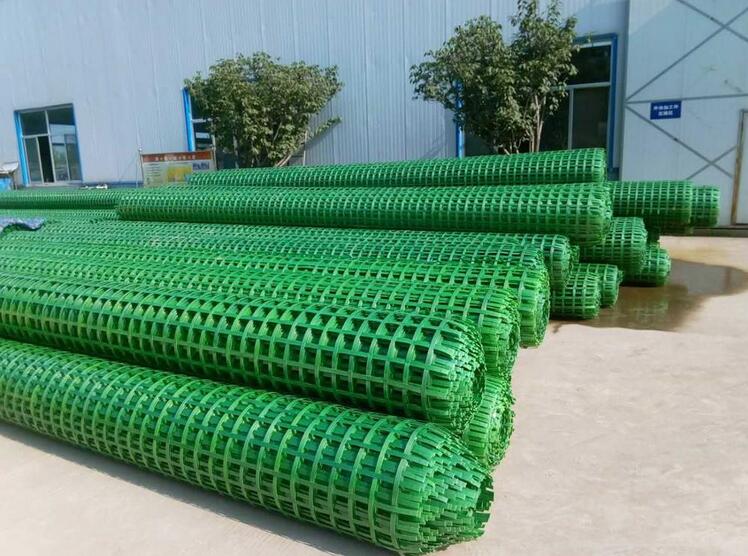

PET geogrid


Mesh size:30x30mm,40x40mm,50x50mm,75x75mm,100x100mm,125x125mm,150x150mm
 Mob/whatsapp/wechat:+86 18017923790 E-mail:shanghai@hongjincsb.com  Skype:wangze_hong

PE/PVC coated steel/fiberglass geogrid production line picture as follows:



PE/PVC coated steel/fiberglass geogrid



Process:
Cooling water-two wheel traction embossed strip-rewinding-into the geogrid machine dribbling frame-into resistance frame welded mould welding-- feeding frame--geogrid rewinder finished products
Extrusion line for geogrid：


Geogrid production line also can geogrid with net:
